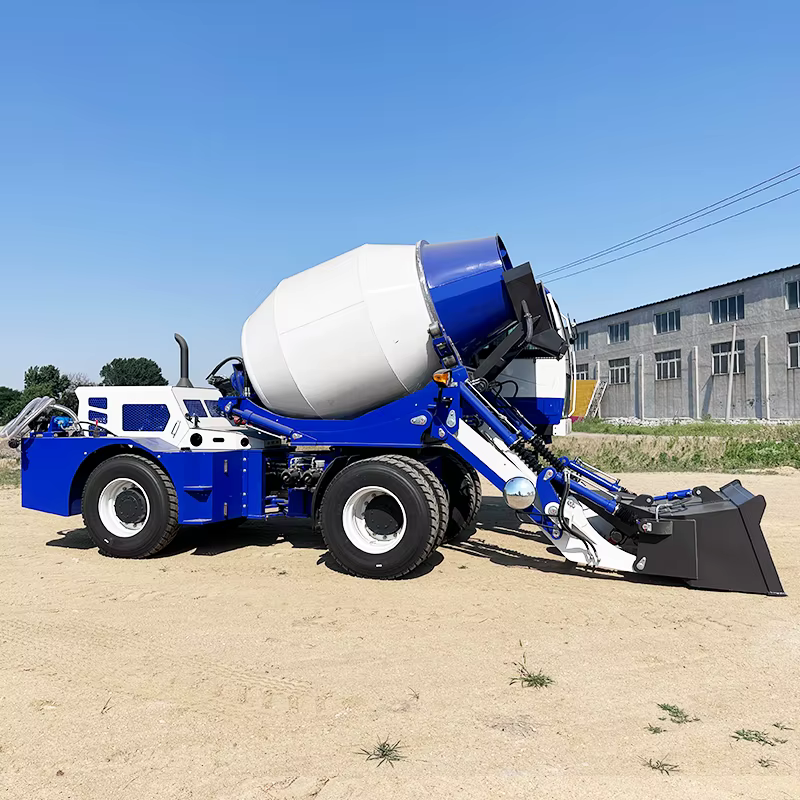

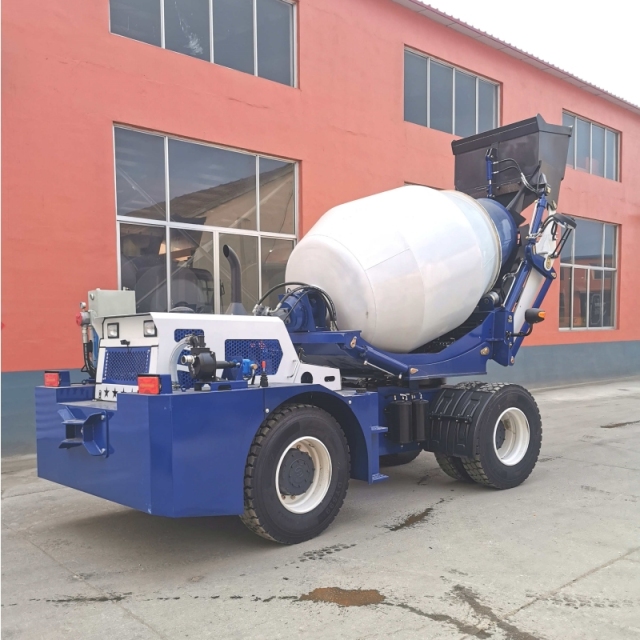

Product Type: Self-Loading Concrete Mixer
Brand: Oceanic
Model: VT-3500
Mixing Capacity: 3.5 Cubic Metres (3.5m┬│)
Rated Power: 76kW
Engine Type: Water-Cooled Diesel Engine
Fuel Type: Diesel
Loading System: Hydraulic Self-Loading Bucket
Mixing Drum: Hydraulic Driven
Drum Rotation: 270┬░
Drive System: Four-Wheel Drive (4WD)
Steering System: Hydraulic Articulated Steering
Maximum Travelling Speed: 0ΓÇô30km/h
Gradeability: 30%
Production Capacity: Up to 14ΓÇô18m┬│/hour
Water Supply System: Automatic
Operator Cabin: Enclosed Cabin
Application: Loading, Mixing, Transporting and Discharging Concrete


3.5m┬│ concrete output per batch for high productivity
Hydraulic self-loading bucket speeds up material loading
Powerful 76kW diesel engine delivers reliable site performance
Four-wheel-drive system provides excellent off-road capability
Hydraulic drum rotates for uniform and consistent concrete mixing
Travelling speed of up to 30km/h allows quick movement between work areas
30% gradeability enables operation on sloped terrain
Reduces labour costs by combining batching, mixing, transport, and discharge in one machine
Strong steel chassis built for demanding construction environments
Suitable for roads, bridges, housing estates, commercial buildings, drainage works, and civil engineering projects
Easy to operate and maintain
Provides consistent, high-quality concrete on-site
